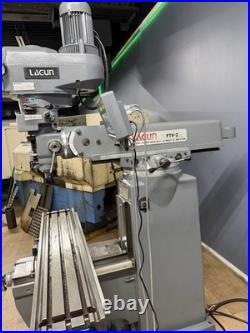

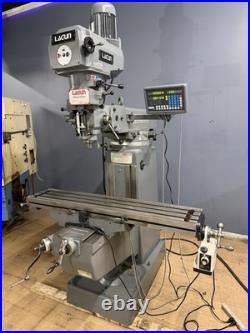

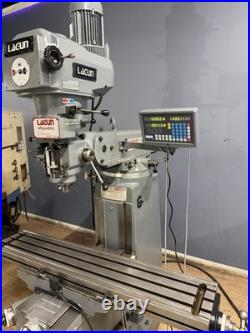

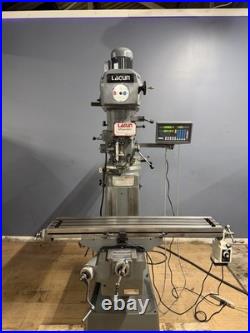

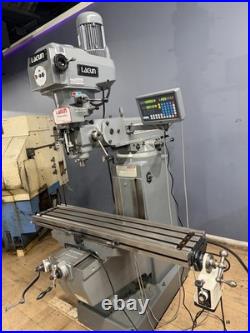

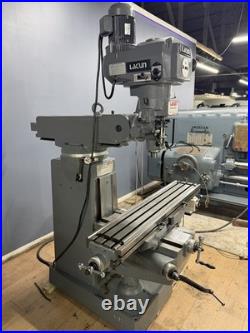

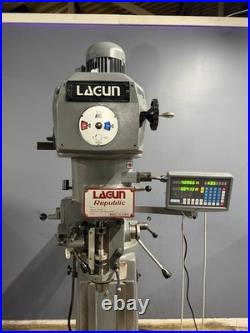

Lagun FTV2 Vertical Mill With Fully Rebuilt Head- Video link in the description








LAGUN FTV-2 VERTICAL MILLING MACHINE W/Fully Rebuilt Head. Surface Area: 50? X 10? T-Slot Sizes: 0.625? Maximum Weight of Workpiece: 750 lbs. X-Axis Table Travel: 33? Y-Axis Table Travel: 16? Z-Axis Table Travel (knee): 16? Spindle Diameter: 1.875? Quill Diameter: 3.375? Distance Spindle to Table (maximum): 18? Distance Spindle to Column (minimum / maximum): 5? To 27? Speeds: 55 to 4,250 RPM. Power Quill Feed: 0.0015? /rev, 0.003? /rev & 0.006? /rev. Motor: 3 Horsepower, 220 / 380-440 Volt, 1,500 / 1,800 RPM, 50 / 60 Hz. Head Swivel: 90 degrees. Head Tilt: 90 degrees. Head Cant: 45 degrees. Brand New 2-Axis DRO. Infinitely Variable Spindle Speeds. New X-Axis Power Feed. General:Electrical: 220 / 380-440 Volt, Three Phase. Overall Dimensions: 68? X 64? X 90? TallComes as shown in pictures. Machine is in excellent condition and can be inspected under power at our warehouse in Independence, Missouri. Price includes loading on a truck. Video link is above in the description.
