2010 Sharp TMV Vertical Mill- Video link in the description

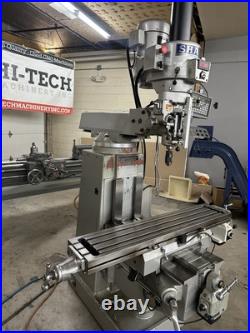

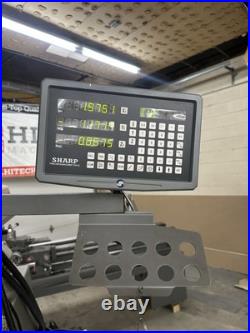

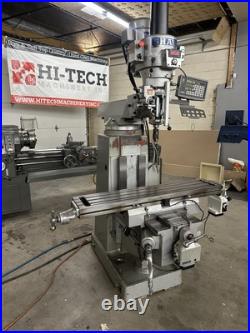

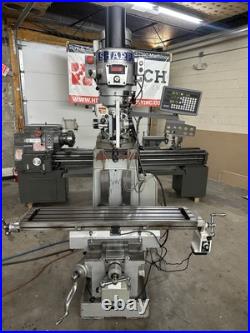

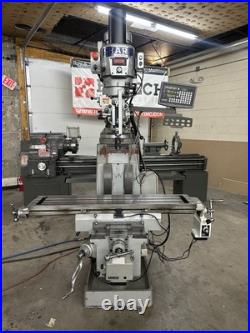

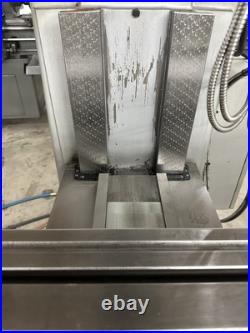

Sharp Model TMV Vertical Mill with DRO & Powerfeeds. Sharp 10? X 50? Vertical Knee Mill. Working Surface: 10? X 50? T-Slot Number, Size: 3, 5/8? Table Travel (X-Axis): 35? Saddle Travel (Y-Axis): 16.3? Ram Travel: 18.5? Quill Travel (Z-Axis): 5? Knee Travel: 15.3? : 9.8? – 28.3? Spindle Gage Line to Table Top: 1.6? – 16.9? Wiring Voltage: 220v / 440v / 3ph. Speed (Vari-Speed): 60 – 4,500 RPM. Quill Feed (IPR): 0.0015, 0.003, and 0.005. Spindle Accuracy: 0.0002? TIR. Head Tilt; Right to Left (Each Way): 90º. Head Tilt; Up-and-Down (Each Way): 45º. Column, Table and Knee. Hardened and ground box ways on column and saddle. Turcite coated slideways for better resistance to wear and retention of lube oil. Table and saddle backlash is controlled by a double-nut design that keeps the feed screw in contact with a pair of bronze nut at all times. Hardened leadscrews on table and saddle for better resistance to wear. The end of the table and saddle are mounted with thrust bearings that pre-load the feed screw, eliminating endplay for precisely controlled lateral movement. Align Power draw bar. 3 axes dro (quill, table & saddle). Powerfeed on X & Y Axis. Hardened and ground box ways. 3 axes DRO (quill, table and saddle). Dimensions: 70? W x 75? Deep x 88? H. This machine is in great condition and can be inspected under power at our warehouse in Independence, Missouri. Price includes loading on a truck. Video link is above in the description.
