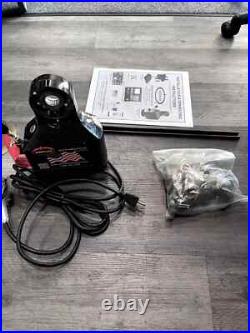

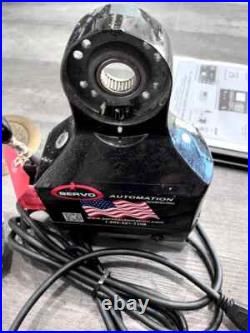

Servo Type 150 Power Feed M-2500-150 Cross Feed Y Axis Series 1 Bridgeport

Type 150 Power Feed. Type 150 – Y Axis Cross Feed. Semi-automated machining on Class 1 mills to 3 hp. Peak Torque (full-wave SCR control compound DC motor): to 150 in. / 17 NM torque. Intermittent Torque: 120 in. / 13.6 NM. Continuous Torque: 100 in. / 11.3 NM. 50-35 IPM / 13-889 mm/min. Rapid Traverse: 35 IPM / 889 mm/min. Gear Reduction Ratio (motor to screw shaft): 72:1. Smooth surface finish at speeds as low as 0.5 ipm or 13 mm/min. Superior speed regulation, ramping, dynamic breaking, friction safety clutch and limiting circuit protection. Helical gearing and torque limiting friction saftey clutch with new and improved gear. Electrical: 110V, 50/60 Hz, 3 Amps. / 6.8 kg.
