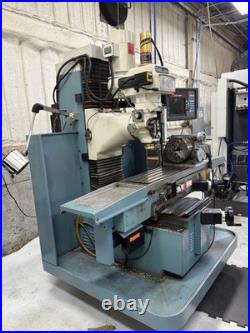

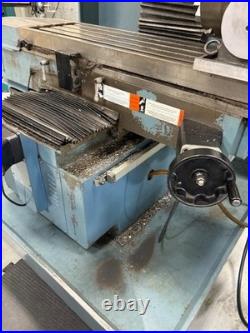

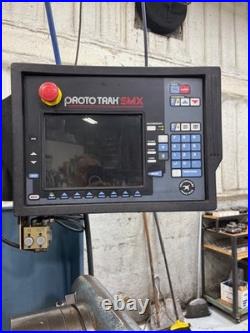

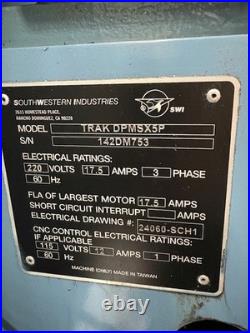

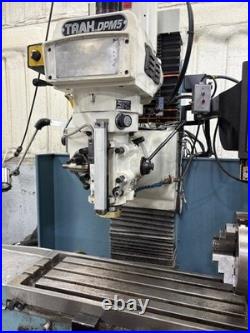

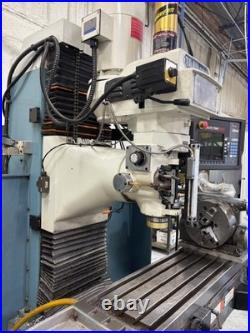

Trak DPM 5 3 axis CNC Bed Mill 12″ x 50″ Table 2015 SMX. Model: Proto Trak DPM5 CNC Vertical Bed Mill. Table size – 50? X 12? T-slots (number x width x pitch) – 3 x 16mm x 63.5mm. Travel (X, Y, Z axis) – 40? X 20? X 24? Quill diameter – 4.13? Spindle taper – 40. Spindle center to column face – 20.5? Spindle motor power – 5 HP. Power requirement, control – 110V, 1P, 15A. Power requirement, machine – 220V, 3P, 60HZ Current. Full Load Amps – 17.5 FLA. Maximum weight of workpiece – 1760 lbs. Height of table from bottom of bed – 41? Maximum spindle nose to table – 24? Minimum height – 87? Maximum height – 100? Width of machine including table – 94? Length with electric box door closed – 80? Overall width including full table travel – 136? Overall length with electrical door open – 105? Footprint – 24? X 48.4? Way surface – dovetail X axis; square ways Y and Z axis. Weight (approximate) net – 4400 lbs. Drill max capacity – 1? Dia. Tapping max capacity – 5/8? ONE OWNER all manuals & splash guards.

Discover the versatility and precision of the Bridgeport Series I, a 2 hp milling machine designed for manual control. Ideal for shops requiring a reliable and robust machine, this model boasts a 220 V, 3 phase voltage capacity, accommodating various materials and projects with ease. The Bridgeport legacy continues with this milling machine, featuring a spindle horsepower that ensures consistent performance for drilling and milling tasks. Although the model year is not specified, the machine’s enduring quality is a testament to Bridgeport’s commitment to excellence in manufacturing. This machine has a pneumatic collet changer, a digital readout, a turntable, and a power feed. It includes a number of milling tools and other accessaries, including a floor tool box for keeping things organized. Has digital readout and power feed table.

WILL REMOVE FROM HED COMPLETE WITH ALL HARDWARE AIR REG INCLUDED WITH DRAWBAR ALSO.
