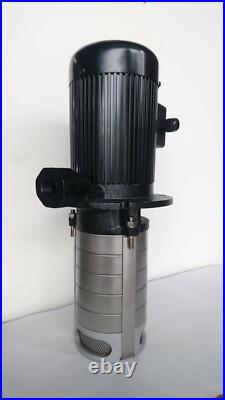

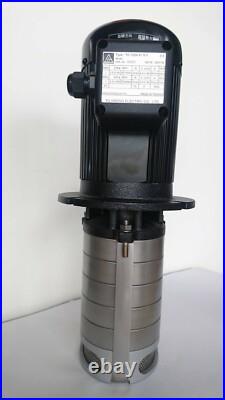

1 HP Multistage CNC Circulation Coolant Pump shaft 226mm 9, 3 Phase 220480V

TC Series coolant pump is single stage and developed for spraying of cooling lubricants and the circulation system, especially for machine tools. Yu Hseng Electric TC multistage pump are developed for industrial machine center, and used in. Spraying of cooling lubricants. Especially for machine tools like CNC, Turning, Milling, Drilling, Cutting, Slitting, Grinding etc. (Lathe, lapping machine,, pressing machine, stamping machine, tapping machine, punch machine, cooling system, oil cooling, water circulation). Immerse vertical multistage centrifugal pump. Co-axial pump and motor design. Impellers assemble on extended motor shaft. High quality stainless steel Immersion stages. Easy installation into machine and maintain. Brand: YU HSENG. Power: 750 W (1 HP). Phase & Voltage Options: 3 Phase & 220V; 240V; 440V; 480V. Discharge Bore: PT 3/4. Length (flange to bottom): 226 mm (9). Max Flow Rate in 60 Hz: 38.8 GPM (147 L/min). Max Lift (Head Height) in 60 Hz : 78.1 ft (23.8 M). Max Pressure in 60 Hz : 34.1 PSI. Max Flow Rate in 60 Hz: 41.2 GPM (156 L/min). Max Lift (Head Height) in 60 Hz : 114.5 ft (34.9 M). Max Pressure in 60 Hz : 49.6 PSI. # Made in Taiwan.
