Hertel Indexable Long Edge Milling Cutter 2-1/2 Cutting Dia. 16 Inserts 6004692
(1) NEW HERTEL INDEXABLE LONG EDGE MILLING CUTTER 2-1/2 CUTTING DIAMETER.. SQUARE SHOULDER FACE MILL…
Comments Off
(1) NEW HERTEL INDEXABLE LONG EDGE MILLING CUTTER 2-1/2 CUTTING DIAMETER.. SQUARE SHOULDER FACE MILL…
Comments Off

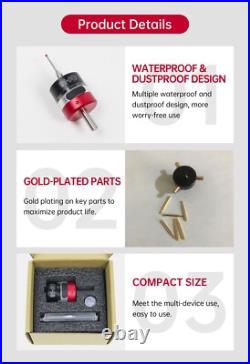

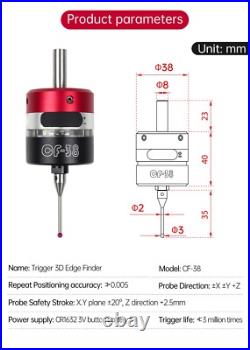

3D Touch Probe Trigger Edge Finder to Find Desktop Center F/ CNC Milling Machine. 1 x 3D Precision Tool Setting. CR1632 3V button battery. Product Name: Trigger 3D Edge Finder. Item model number: CF-38. Repeat positioning accuracy: =0.005. Probe direction: ±X ±Y +Z. Probe safety stroke: X. Y plane ±20°, Z direction +2.5mm. Trigger life:=3 million times. Power supply: CR1632 3V button battery × 1. Installation of the probe. As shown in the figure below, there is a wrench slot at the probe interface. When installing the probe, you must hold the probe seat to prevent it from rotating, otherwise the internal parts of the probe will be damaged. As shown in the figure below, remove the battery plug, remove the battery with tweezers, replace the battery with a new one, and install the battery according to the “±” mark on the side. After the replacement, plug the battery plug tightly. There is a wrench slot at the probe interface. Remove the battery rubber plug, remove the battery with tweezers, replace the battery with a new one and install the battery according to the “±” mark on the side. After the replacement, plug the battery rubber plug tightly. Adjustment of center deflection. The silver screw is the adjustment screw × 4. Use a dial gauge to measure the runout of the probe ball and adjust the runout to 0. 1x V5 3D touch probe. 1x Stainless steel probe tip. 1x Storage box for storing probe. The DIYO three-coordinate probe can realize quick centering, edge finding, center finding, shape measurement and other functions by connecting the CNC to the knife edge, which greatly;Repeatability Accuracy: 0.01 mm/ 0.0004 in. Solves the trouble of positioning the workpiece during the second clamping during the machining process. Adapt to various control panels such as grbl control panel and Mach3. NPN-NO 3 wires: Red-VCC (DC5-24V power);Yellow: IO/ Signal Output;Black- GND(DCM); Indicator light: green light when power on, red light after triggering. Material of the probe? The shell is made of fine frosted black oxidized aluminum alloy with a flat surface anti-roll design. Material of the stylus? The probe tip/stylus is machined from stainless steel up and down, and the ball head is made of tungsten steel ball, which has the advantage of wear resistance. Please measure and adjust it by yourself after receiving the goods. Be sure to use ER11 spring chucks of AAA or above, otherwise the concentricity of the probe tip will be affected. The feature of waterproof and dustproof greatly extends the service life of the probe. Our product comes with a storage box. The shockproof cotton in this storage box protects the probe well, and also avoids collisions and scratches during transportation. The probe tip is machined from stainless steel up and down, and the ball head is made of tungsten steel ball, which has the advantage of wear resistance. NPN-NO 3 wires: Red-VCC (DC5-24V power);Yellow: IO/ Signal Output;Black- GND(DCM). Repeatability Accuracy: 0.01 mm/ 0.0004 in. Approach Direction: ±X, ±Y, +Z. Over Travel Protection Distance: X- ± 4mm/0.16 in, Y- ±4mm/ 0.16 in,, Z- 2mm/ 0.08 in. Lifetime: > 3 million triggers. Yellow: IO/ Signal Output. Indicator light: green light when power on, red light after triggering. Software Recommendation for 3D Probe (We do not provide software). If you are using a mach3 system, it is recommended to use the open source Probe Wizard. If you are using the grbl system, it is recommended to use Grblgru. Need to turn on the spindle speed? Never, never, never, definitely no. How to distinguish the three wires? The red wire is VCC, the black wire is GND, and the white wire is IO. Why is the concentricity different every time the probe is installed? Because your ER chuck spring clip cannot ensure 100% uprightness. Every time the probe is installed, even if the concentricity is adjusted to 1 wire, there will still be deviations when the probe is removed and installed again. Problem&Feedback Please give us the opportunity to resolve any problem when you have, we concern your problem and we will try our best to resolve it. Item must be in it’s original condition and no physical damage.
Comments Off
This is an SWI Trak Model K3 Vertical Knee & Ram Type Milling Machine That Was Upgraded on July 15th of 2020 With A New SWI ProtoTrak Edge CNC Controller. Specifications are as follows. Max Weight of Workpiece. X-Axis (Longitudinal Table Travel). Y-Axis (Cross Saddle Travel). Z-Axis (Vertical Knee Travel). “Z” Axis Read Out of Quill Travel On ProtoTrak Screen. Pneumatic Powered Draw Bar. One Shot Lubrication System. (7) Assorted R-8 Collets. We believe the new owner of this “ABSOLUTELY EXCELLENT” SWI Trak K3 Vertical Milling Machine with a New in 2020 ProtoTrak Edge CNC Control will be very happy with it. We will load, free of charge on any truck or trailer. First of all, our descriptions are as accurate as we can possibly make them, and we’ve been describing equipment for longer than we care to admit. Every item we sell, unless otherwise stated, is available for inspection at our Miamisburg, Ohio Warehouse 515 Kercher St. Best Ways Brokerage Inc. The Trak K3 Milling Machine will weigh approx. 3,000# and occupy 6′ of bed space. Further, inform them that it needs to be on air ride and tarped. This item is in the category “Business & Industrial\CNC, Metalworking & Manufacturing\Metalworking Equipment\Machining Centers & Milling Machines”. The seller is “u$ave2″ and is located in this country: US. This item can be shipped to United States.
Comments Off
Bridgeport ProtoTrak EDGE Two Axis CNC / Manual Vertical Mill 2HP 48 Table Southwestern Industries Control. 2012 Model Control Very user friendly. Can also use control as DRO position for manual operation. Machine is in great shape. 1 Shot Lube system serviced. Head disassembled cleaned and inspected. New plastic keys and bushings. (88) Bridgeport CNC Prototrak Edge 2 Axis Control Learn Run – YouTube. All products are as is. I shall have no other obligation or liability, direct or indirect, of any kind, including liability for special, incidental, or consequential damages. This item is for sale locally and may end at any time. This item is in the category “Business & Industrial\CNC, Metalworking & Manufacturing\Metalworking Equipment\Machining Centers & Milling Machines”. The seller is “stantecss” and is located in this country: US. This item can be shipped to United States.
Comments Off
This is an SWI Trak Model K3 Vertical Knee & Ram Type Milling Machine That Was Upgraded on July 15th of 2020 With A New SWI ProtoTrak Edge CNC Controller. Specifications are as follows. Max Weight of Workpiece. X-Axis (Longitudinal Table Travel). Y-Axis (Cross Saddle Travel). Z-Axis (Vertical Knee Travel). “Z” Axis Read Out of Quill Travel On ProtoTrak Screen. Pneumatic Powered Draw Bar. One Shot Lubrication System. (7) Assorted R-8 Collets. We believe the new owner of this “ABSOLUTELY EXCELLENT” SWI Trak K3 Vertical Milling Machine with a New in 2020 ProtoTrak Edge CNC Control will be very happy with it. We will load, free of charge on any truck or trailer. First of all, our descriptions are as accurate as we can possibly make them, and we’ve been describing equipment for longer than we care to admit. Every item we sell, unless otherwise stated, is available for inspection at our Miamisburg, Ohio Warehouse 515 Kercher St. Best Ways Brokerage Inc. The Trak K3 Milling Machine will weigh approx. 3,000# and occupy 6′ of bed space. Further, inform them that it needs to be on air ride and tarped. This item is in the category “Business & Industrial\CNC, Metalworking & Manufacturing\Metalworking Equipment\Machining Centers & Milling Machines”. The seller is “u$ave2″ and is located in this country: US. This item can be shipped to United States.
Comments Off
Used to locate working. Shoulders and centres on a Milling Machine. 2 x 3/8 dia. 2 x 1/2 dia. The item “RDGTOOLS 4PC EDGE AND CENTRE FINDER WIGGLER SET” is in sale since Thursday, April 15, 2021. This item is in the category “Business, Office & Industrial\CNC, Metalworking & Manufacturing\Metalworking Equipment\Machining Centers & Milling Machines”. The seller is “rdg355″ and is located in YORKSHIRE. This item can be shipped worldwide.
Comments Off
Pro Tram Bridgeport Head Square Knee Mill Spindle CNC Router Milling Edge Tech. Square the head of a milling machine quickly and easilySimply lower unit to the table and adjust the head until both indicators read the sameSized perfectly to fit the bed of a 6″ vise allowing the head to be trammed to the vise instead of the tableCan be used with a sine bar or sine plate to adjust the head to precise anglesCalibration procedure accounts for any error introduced by worn colletsGuaranteed to be equal to or better than any other tramming method or spindle squaring device availableLarge 2.2″ easy to read indicator faceBody made from red anodized aluminiumIncludes calibration gauge and padded caseThe Pro Tram by Edge Technology makes the process of tramming your mill fast, easy and accurate – Tramming is the process of squaring the head of your mill to the table. Most machinists know that if your mill is not trammed properly, surface finishes will be poor and parts will not be flat or square. Most machinists also know that conventional tramming techniques can be tedious and time consuming. The Pro Tram solves these issues allowing you to tram your mill quickly and accurately. To use the Pro Tram simply lower the unit down onto the table and adjust the head until both indicators read the same number. Repeat this process for the opposite axis and you are done. The Pro Tram is also sized perfectly to fit the bed of a 6 inch vise allowing you to tram the head to the vise instead of the table. If you want to spend less time tramming your mill and more time machining parts then you need the Pro Tram by Edge Technology. Key SpecificationsShank Size – 1/2 inch. Graduation – 0.0005inch. Gauge repeatability – 0.0002 inch. Between Centres – 5 inch. Edge Technology Pro Tramming Gauge for accurately setting milling head square. We offer full UK support on all the products we sell. Same day despatch on all items ordered before 15:00 GMT. Square the head of a milling machine quickly and easily. Simply lower unit to the table and adjust the head until both indicators read the same. Sized perfectly to fit the bed of a 6 vise allowing the head to be trammed to the vise instead of the table. Can be used with a sine bar or sine plate to adjust the head to precise angles. Calibration procedure accounts for any error introduced by worn collets. Guaranteed to be equal to or better than any other tramming method or spindle squaring device available. Large 2.2 easy to read indicator face. Body made from red anodized aluminium. Includes calibration gauge and padded case. The Pro Tram by Edge Technology makes the process of tramming your mill fast, easy and accurate – Tramming is the process of squaring the head of your mill to the table. Shank Size – 1/2 inch. Machine DRO are suppliers of Digital Readout Systems, Measuring Tools, Machine Tools. Established in the UK in 2003 and we pride ourselves on providing top quality tools and equipment with professional customer service and support to both professionals and hobbyists. The item “Pro Tram Bridgeport Head Square Knee Mill Spindle CNC Router Milling Edge Tech” is in sale since Tuesday, August 7, 2018. This item is in the category “Business, Office & Industrial\CNC, Metalworking & Manufacturing\Metalworking Equipment\Machining Centers & Milling Machines”. The seller is “machine_dro” and is located in Hoddesdon. This item can be shipped worldwide.
Comments Off
Edge Technology Multi Axis Hardened Stop Rod with 1/2-13 socket head cap. Unique design stays completely below the top surface of vice jaws for cutter clearance. Stop rod stays parallel to the milling machine table so workpiece will contact rod face squarely for increased accuracy. Versatile design allows the 5/16 hardened stop rod to be quickly and accurately positioned. Large 1/2-13 socket head cap screws rigidly clamp the unit in position after adjustments are made. Base of unit is keyed to T-slot in table. The Multi Axis Stop by Edge Technology has a design that stays completely below the top surface of the vise which means it will not interfere with cutting tool paths. It will also keep the stop rod square to the workpiece throughout the entire range of motion. This configuration provides a more consistent locating surface for increased part accuracy. It can be mounted on any available T-slot anywhere along the milling machine table allowing it to accurately locate a workpiece for any type of setup. The Multi Axis Stop is designed so that it stays completely below the top surface of the vice which means it will not interfere with cutting tool paths. We offer full UK support on all the products we sell. Same day despatch on all items ordered before 15:00 GMT. Machine DRO are suppliers of Digital Readout Systems, Measuring Tools, Machine Tools. Established in the UK in 2003 and we pride ourselves on providing top quality tools and equipment with professional customer service and support to both professionals and hobbyists. The item “Edge Technology Multi Axis Hardened Stop Rod with 1/2-13 socket head cap” is in sale since Tuesday, August 7, 2018. This item is in the category “Business, Office & Industrial\CNC, Metalworking & Manufacturing\Metalworking Equipment\Machining Centers & Milling Machines”. The seller is “machine_dro” and is located in Hoddesdon. This item can be shipped worldwide.
Comments Off
Edge Technology Chuck Stop with a set of 10 hardened parallel bars. 10 sets of hardened parallel bars with case. 0.0002 parallelism accuracy. Parallel bar heights from 1/2″ to 1-5/8″ in 1/8 increments. Strong neodymium magnets secure the Chuck Stop to the chuck face. A centering plug fits the ID of the chuck and keeps the Chuck Stop centered. Included centering plug diameters are 1.4″, 2.0″, 2.5″, 3.0″, 3.5″, and 4.0″The Chuck Stop is 6.0 in diameter. Designed for 3 jaw chucks only. For use on 6 diameter chucks and larger. The Chuck Stop by Edge Technology is designed to locate shorter parts beyond the chuck jaws to provide clearance for facing operations. The Chuck Stop includes 10 sets of different height parallel bars to achieve the required spacing. A centering plug is used to keep the unit centered to the ID of the chuck and strong neodymium magnets secure it to the face of the chuck. Accurately locate parts beyond the chuck jaws to provide clearance for facing operations. We offer full UK support on all the products we sell. Same day despatch on all items ordered before 15:00 GMT. Included centering plug diameters are 1.4″, 2.0″, 2.5″, 3.0″, 3.5″, and 4.0″. The Chuck Stop is 6.0 in diameter. Machine DRO are suppliers of Digital Readout Systems, Measuring Tools, Machine Tools. Established in the UK in 2003 and we pride ourselves on providing top quality tools and equipment with professional customer service and support to both professionals and hobbyists. The item “Edge Technology Chuck Stop with a set of 10 hardened parallel bars” is in sale since Thursday, December 27, 2018. This item is in the category “Business, Office & Industrial\CNC, Metalworking & Manufacturing\Metalworking Equipment\Machining Centers & Milling Machines”. The seller is “machine_dro” and is located in Hoddesdon. This item can be shipped worldwide.
