Message us within 30 days of receipt if item is not working properly.

The Fadal 1010-4 Axis Control Board is a CNC control system designed specifically for milling machines with a Z-axis capability. This advanced technology allows for precise and efficient machining of various materials. The Fadal brand is known for producing reliable and durable machinery, making this control board a dependable choice for businesses in the metalworking industry.

FADAL VMC 40 CNC MILL WITH 4TH AXIS CARD BOX WAY MACHINE. THIS IS A VERY SAUGHT AFTER RIDGID BOX WAY MACHINE. IT HAS A 10,000 RPM SPINDLE, SPINDLE CHILLER, 10 HP, 21 PLACE TOOL CHANGER, LOADED WITH TOOL HOLDERS AND HOLDS. 001 TOLERANCE WITH NO PROBLEM. SEE MORE DETAILS IN THE VIDEO BELOW.

Great working CNC machine Fadal Vertical Machining Center Model 804-1 / 907-1 6030 Cat-40 spindle taper 22.5 HP motor Overall height 8′ 9 with Z axis motor off. It is located in a Chicago shop.

Fadal DOCUMENTATION CD DISC 2003 Original For CD ROM – User Manual Machinery.

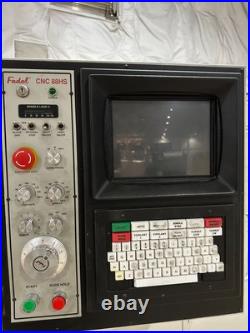

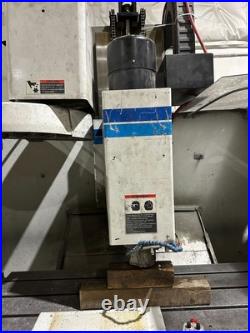

FADAL 907-1 VMC 6030 (1996). The FADAL 6030 Model 907-1 Vertical Machining Center (CNC) is a used high-capacity CNC milling machine engineered for precision, rigidity, and versatility in demanding machining applications. With an expansive 60″ x 30″ x 30 travel, powerful 15 HP spindle motor, and a robust 20-position automatic tool changer (ATC), this VMC delivers efficient operation and high throughput for both one-off and production-level tasks. Rapid Traverse Rate (X/Y/Z). X-Axis Travel: 60″ Y-Axis Travel: 30″ Z-Axis Travel: 30″ Rapid Traverse (X, Y, Z): 400 IPM Table Size: 30″ x 62.5″ Max Table Weight: 3,300 LB Spindle Nose to Table: 5.5″ – 35.5 Spindle Motor: 22.5 HP Spindle Speed: 10 – 10,000 RPM Spindle Taper: CAT 40 Auto Tool Changer: 20.

Used with 8192 encoder feedback motors on smaller linear way machines. The AMP-0040C is a digital version of the legacy AMP-0040 and is suitable as a drop in replacement. Many of the thru hole components have been replaced with surface mount components to increase product reliability. This amplifier can be used with AC axis motors with 8192 encoders. Wiring is identical to the AMP-0040. Pot location and adjustment is the same as the AMP-0040. Produces identical ball bar results as the legacy version. Can be programmed for other motors if required. Replaces AMP-0043 and AMP-0039.

FADAL #VMC2216 VERTICAL MACHINING CENTER. TABLE: 16″ X 36″. MODEL: 904 VMC2216HT. TOOLHOLDERS – 20. CURRENTLY WIRED 480V.

Message us within 30 days of receipt if item is not working properly.

CNC Milling MachineSpecifications: Fadal 4020 VH65 4th axis rotary with tailstock. Was removed from a running machine. Has stains, dings, and areas with sealant. Flaws – Stains, dings, and areas with sealant. Approximate Weight – 400 lbs. Part Number – N/A. Includes – Pictured parts. Additional Information – N/A. Items can be picked up. My shop is located 10 miles southeast of St. Louis, MO in Millstadt, IL 62260. Forklift loading is FREE. Ensure the item will fit your needs. ASK QUESTIONS BEFORE PURCHASING.
